Our Products
Pipes and Hollow Section
Petro Ferro DMCC supplies all type of tubular products weather welded or seamless pipes for a variety of application including sour service, in accordance with API 5L, 5CT,and ASTM latest revisions. Upon our clients requests we are ready to consider and evaluate other specifications or standards.
Welded Pipes
These pipes range are from 1/2" to 56" OD and are manufactured according to high frequency welding method HFW or longitudinally submerged arc welding methods SAW. They are mostly used for the transport of crude oil or gas inland or offshore. They can also be used as an OCTG casing or conductor pipes for drilling applications. In some cases the piping systems in refineries are used by welded pipes.

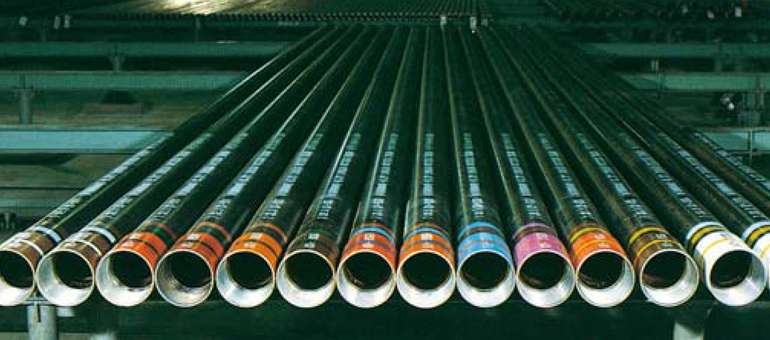

OCTG Pipes
These pipes range are from 2 3/8" to 4-1/2 " for tubing, 4-1/2" to 26" for casing pipes. Tubing's are manufactured according to seamless method with different steel grades, including L80, X80 and with chrome or nickel content for special corrosion resistance alloyed.
Casing and conductors pipes can either be seamless or welded with grades J/K55. They are manufactured according to API 5 CT or ISO 19108. All tubing and casing pipes are supplied with VAM TOP, New VAM, Buttress, Big omega, swift, RL4S, DW2 or other premium threads and couplings. Upon clients request we can also provide slotting services for the pipes as well.
Seamless Pipes
Seamless Mechanical tubing
- Pipe type
- carbon steel tubing, round steel tubing
- Application
- In the Mechanical Engineering and general Engineering Fields.
- Specification
- OD: 0.875” – 26” (22.2 – 660.4 mm) WT:0. 873” _ 4” (2.1 – 101.6 mm Length: fixed length (95.8/6/11.8/12 meter), SRL, DRL
- Standard
- ASTM A519
- Ends
- Square Ends / Plain Ends (straight cut, saw cut, torch cut), beveled /Threaded Ends.
- Surface
- Bare, lightly Oiled, Black / Red / Yellow Painting, Zinc /Anti – corrosive coating
- Packing
- Bundled / In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

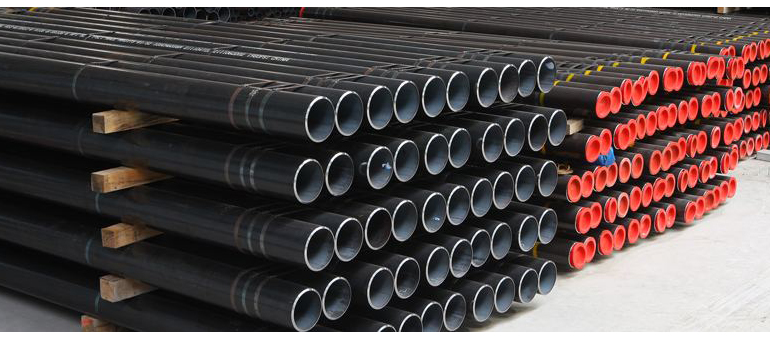

API 5L Pipe Line Pipe
- Pipe Type
- Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon steel Line Pipe
- Application
- For Pipeline Transportation in petroleum and natural gas industries
- Specification
- OD: 2” – 26” (50.8 – 660.4 mm) WT:SCH 10 – 160 , SCH STD ,SCH XS, SCH XXS Length: fixed length (5.8/6/11.8/12 meter), SRL, DRL
- Standard
- API 5L , PSL 1/PSL 2 Gr.A/A/X42/X46/X52/X56/X60/X65/X70/X80
- Ends
- Square Ends / Plain Ends (straight cut, saw cut, torch cut), beveled /Threaded Ends.
- Surface
- Bare, lightly Oiled, Black / Red / Yellow Painting, Zinc /Anti – corrosive coating
- Packing
- Bundled / In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Boiler Tube
- Pipe Type
- Boiler seamless Tube, Seamless Boiler Tube , Boiler Pipe
- Application
- For High – pressure Fluids Transmission (Boiler, heat exchanger, condenser).
- Specification
- OD: 0.84 ” – 28 ” (21.3 – 711 mm) WT: 0.091 “ -1.575” (2.3 – 40 mm) Length: fixed length (5.8/6/11.8/12 meter), SRL, DRL
- Standard
- ASTM A 179 , ASTM A 192 , ASTM A 210
- Ends
- Square Ends / Plain Ends (straight cut, saw cut, torch cut), beveled /Threaded Ends.
- Surface
- Bare, lightly Oiled, Black / Red / Yellow Painting, Zinc /Anti – corrosive coating
- Packing
- Bundled / In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Precision Steel Tube
- Pipe Type
- Seamless Tube, Seamless steel tube, Seamless Precision tube.
- Application
- For Mechanical Structure, Hydraulic Equipment, Automotive parts.
- Specification
- OD: 4MM - 114 mm WT:0. 5mm _ 8 mm Length: fixed length (95.8/6/11.8/12 meter), SRL, DRL
- Standard
- DIN 2391, EN 10305, GB / T 3639-2009
- Ends
- Square Ends / Plain Ends (straight cut, saw cut, torch cut), beveled /Threaded Ends.
- Surface
- Bare, lightly Oiled, Black / Red / Yellow Painting, Zinc /Anti – corrosive coating
- Packing
- Bundled / In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped.

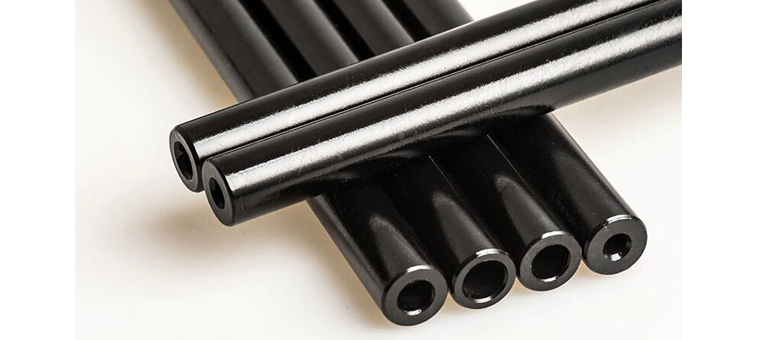

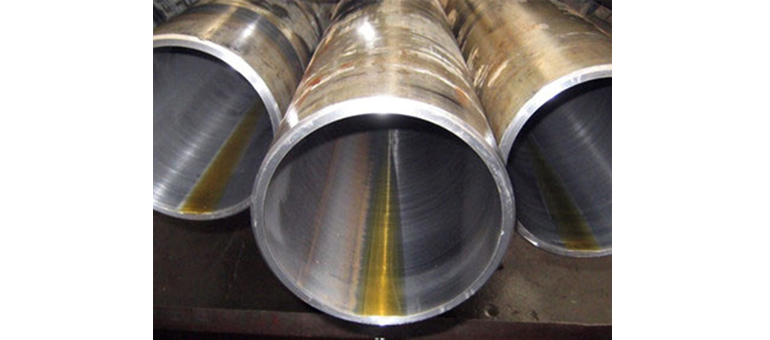

Seamless Hydraulic Tubing
- Pipe Type
- Seamless Tube, Seamless steel tube, Seamless Precision tube. carbon steel tubing , Round steel tubing, Seamless Steel tubing
- Application
- For High Pressure Tubing and Hydraulic Cylinder
- Specification
- OD: 0.25” – 1.25 “ (6.35 – 31.75 mm) - 114 mm WT:0. 035 “ – 0.12’ (0.889 – 3.048 mm ) Length: fixed length (95.8/6/11.8/12 meter), SRL, DRL
- Standard
- SAE J254
- Ends
- Square Ends / Plain Ends (straight cut, saw cut, torch cut), beveled /Threaded Ends.
- Surface
- Bare, lightly Oiled, Black / Red / Yellow Painting, Zinc /Anti – corrosive coating
- Packing
- Bundled / In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped.
